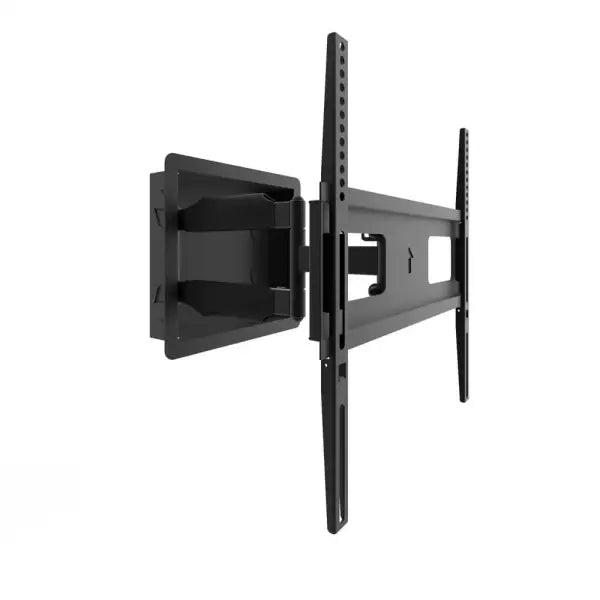

Achieve an ultra-low-profile setup with the R500 in-wall TV mount. Designed to be inserted between two studs measuring 16” apart, this unique mounting solution lets your TV sit 1.25” from the wall when fully retracted. Its 27.6” long articulating arm provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles. Built out of high-grade steel, the R500 in-wall mount supports 46” to 80” TVs weighing up to 135 pounds.
- Fits most flat panel TVs from 46” to 80”
- Supports TVs up to 135 lb (62 kg)
- Fits between 16” wood stud centers
- Accommodates VESA sizes: 100x100 to 600x400
- Accessible tilt mechanism provides a +10° to -5° tilt angle
- 90° of swivel in either direction, dependent on screen size

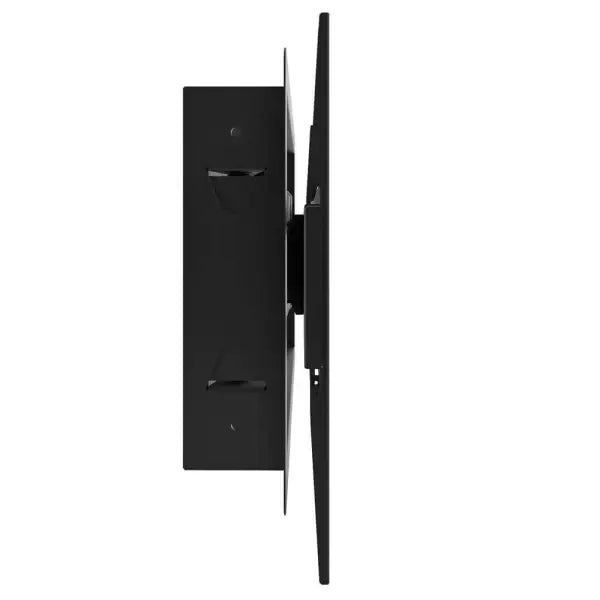

- Sits 1.25” (3.2 cm) from the wall

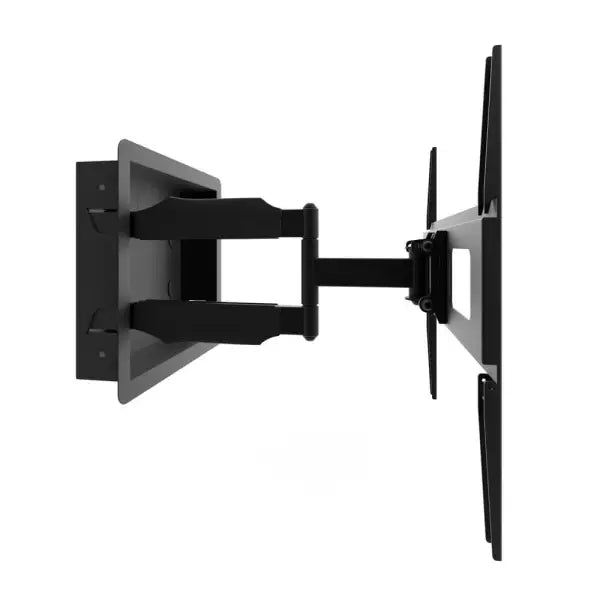

- Extends up to 27.6” (70.2 cm) from the wall
- Integrated cable management system
- Solid steel construction with durable powder-coated finish
- Includes installation manual and all necessary mounting hardware
- Five year warranty
- Shipping box weight: 38.6 lb (17.5 kg)
- Shipping box dimensions: 27.8’’ x 17.7’’ x 5.5’’ (70.5 x 45 x 14 cm)
- Product weight: 36.4 lb (16.5 kg)
- UPC: 800152717463
